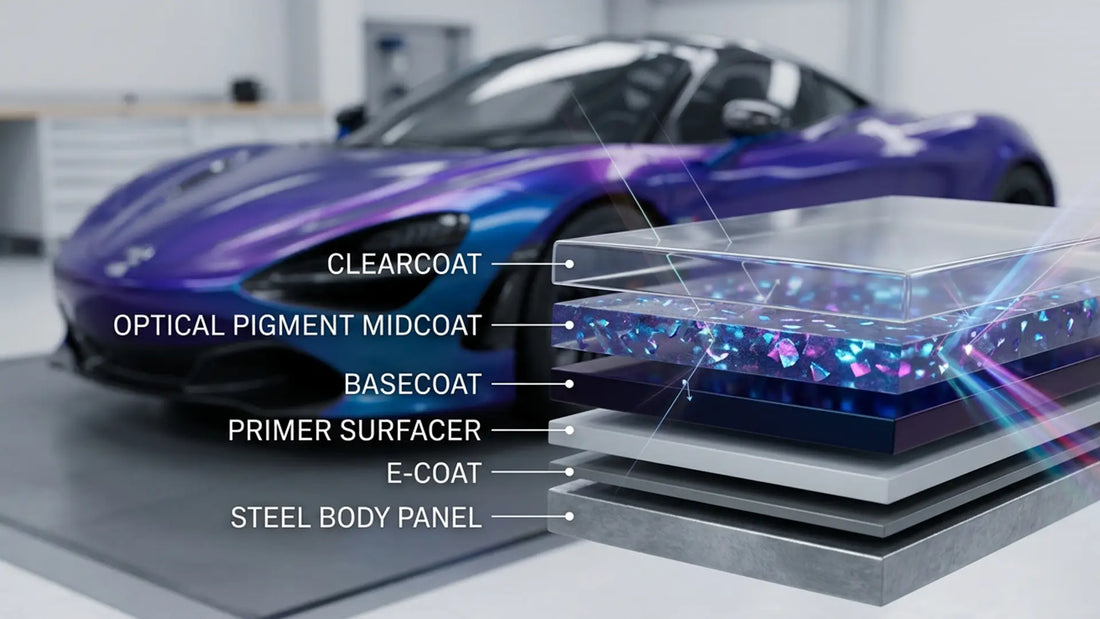

How Optical Pigment Layer Design Creates Custom Automotive Finish Effects

Modern custom automotive finishes often rely on multi-layer coating systems to create complex visual effects that cannot be achieved by a single coating layer. By designing how different coating layers work together, manufacturers and custom finish developers can control characteristics such as color depth, reflection, transparency and color-changing effects.

For optical pigments in automotive coatings, layer design provides a way to combine different optical functions within one finish system. Instead of relying on a single pigment layer, different layers can be arranged to create a more balanced and sophisticated appearance, allowing each component of the coating system to contribute to the final visual effect.

1. Metallic Basecoat with Optical Pigment Midcoat: Creating Layered Automotive Effects

One practical approach for creating advanced automotive finishes is to separate metallic reflection and optical effects into different coating layers. Rather than relying only on mixing multiple pigments within a single coating layer, a layered coating design assigns different optical functions to different layers. In this structure, a metallic basecoat can provide the reflective foundation, while an optical pigment midcoat introduces additional color variation, interference effects or visual depth.

The metallic basecoat establishes the reflective foundation of the finish, so the selection of aluminum pigments strongly influences the final appearance. Fine aluminum flakes are commonly used when a smooth, uniform metallic surface with clean reflection is desired, while larger flakes create stronger sparkle and a more visible metallic texture. However, particle size is not the only consideration: flake orientation, reflectivity, hiding power and the tone of the metallic foundation also affect how the optical pigment layer is perceived. A smoother, brighter metallic base can enhance reflected light, while a more opaque or strongly reflective foundation may reduce the contribution of the optical layer underneath.

The optical pigment midcoat determines how the metallic foundation is visually transformed. Instead of simply adding more reflection, the midcoat controls how light interacts with the finish through reflection, interference and transmission. For example, more opaque optical pigments can create stronger visual impact and color-shifting effects, while translucent optical pigments allow more interaction with the metallic base layer to produce greater depth and layered color appearance. The choice between these approaches depends on whether the desired finish prioritizes strong color change, chrome-like brightness, or a deeper transparent effect. This relationship between pigment transparency and visual performance is an important consideration when designing optical pigment finishes with different levels of coverage and depth.

This type of layered design is commonly used for custom automotive finishes where a standard metallic or solid color is not sufficient to create the desired visual impact. It is particularly relevant for show vehicles, custom builds, motorcycles and specialty refinishing projects, where multi-layer systems are used to achieve deeper colors, stronger optical effects and more distinctive appearances. Similar approaches are also used in selected automotive tri-coat finishes, where transparent intermediate layers help create higher color saturation and visual depth.

2. Dark Basecoat with Transparent Optical Pigment Layer: Balancing Coverage, Color Depth and Optical Effects

A dark basecoat combined with a transparent optical pigment layer is commonly used to create finishes with greater depth, color richness and optical variation. In this layered system, the final appearance depends not only on the optical pigment itself, but also on how much the underlying basecoat contributes through the transparent effect layer. The balance between the optical pigment layer and basecoat contribution is therefore a key factor in controlling the final color and visual depth.

Because translucent optical pigment layers are designed to interact with the layer underneath, their application level must be carefully controlled. A lighter effect layer allows more influence from the basecoat, while a heavier layer increases the dominance of the optical pigment effect and reduces the contribution of the foundation color. This relationship between pigment amount, film build and final appearance is an important consideration when determining optical pigment loading for custom automotive finishes.

This type of layered design is commonly used in custom automotive finishes where a translucent effect layer is intentionally combined with a carefully selected basecoat to create deeper and more complex appearances. Candy and tri-coat systems used in custom cars, hot rods and motorcycles are typical examples, where a transparent midcoat works together with the underlying base layer to create greater color depth, saturation and visual variation. Similar principles are also used in selected OEM translucent finishes, where the interaction between the base layer and transparent effect layer determines the final appearance.

3. Optical Pigment Layer with Candy Color Layer: Creating Deeper and More Saturated Effects

Using optical pigments in the basecoat and applying a transparent candy layer above creates a layered finish where each layer contributes a different visual function. The optical pigment basecoat establishes the reflective or color-shifting foundation, while the transparent candy layer modifies the transmitted and reflected light to increase color richness and visual depth. This approach follows the same principle used in traditional candy finishes, where a reflective effect layer is combined with a translucent color layer to create a deeper appearance than a single coating layer can achieve.

The selection of optical pigments in the basecoat depends on the desired foundation effect. More reflective or opaque optical pigments are generally suitable when the goal is to create a strong visual base, such as metallic brightness, chrome-like reflection or pronounced color travel. In some formulations, optical pigments can also be combined with metallic pigments such as aluminum to provide additional reflection before the transparent candy layer is applied. Translucent optical pigments can be used when greater interaction between layers is desired, allowing the basecoat effect, candy color and underlying surface to contribute together to the final appearance.

The final result depends on maintaining the right balance between the optical pigment basecoat and the transparent candy layer. If the candy layer becomes too dominant, it can reduce the visibility of the optical effect underneath; if the color layer is too light, the intended color richness may not develop sufficiently. This layered approach is mainly used for custom automotive finishes, including candy-style finishes, motorcycles, hot rods and show vehicles, where builders use multiple coating layers to create deeper and more distinctive appearances.

4. Optical Pigment Midcoat with Tinted Clearcoat: Refining Color Depth and Final Appearance

A tinted clearcoat applied over an optical pigment midcoat provides an additional color adjustment layer without replacing the optical effect created underneath. In this system, the optical pigment midcoat establishes the main visual characteristics, such as color travel, interference, metallic reflection or sparkle, while the tinted clearcoat modifies the transmitted and reflected light to fine-tune the final hue, saturation and depth. Automotive coating systems use similar approaches in multi-layer finishes, where effect pigments are combined with transparent pigments in the clearcoat layer to create higher color saturation and richer visual appearance.

The key to this design is controlling the transparency and color strength of the tinted clearcoat. A lightly tinted clearcoat can adjust the overall tone while preserving the optical behavior of the midcoat, whereas excessive color density may absorb more light and reduce the brightness or visibility of the effect underneath. Because the tinted clearcoat is still part of the final protection and appearance system, factors such as clearcoat formulation, film build and application conditions also influence the final result. This is why the effect of clearcoat should be considered as part of the complete coating system rather than as a separate finishing step.

This layered approach is mainly used for complex automotive finishes that require precise color tuning, including specialty OEM colors, custom builds and show-quality finishes. By separating the optical effect layer from the final color adjustment layer, designers can achieve appearance characteristics that are difficult to obtain with a single coating layer, while maintaining greater control over color depth and visual balance.
