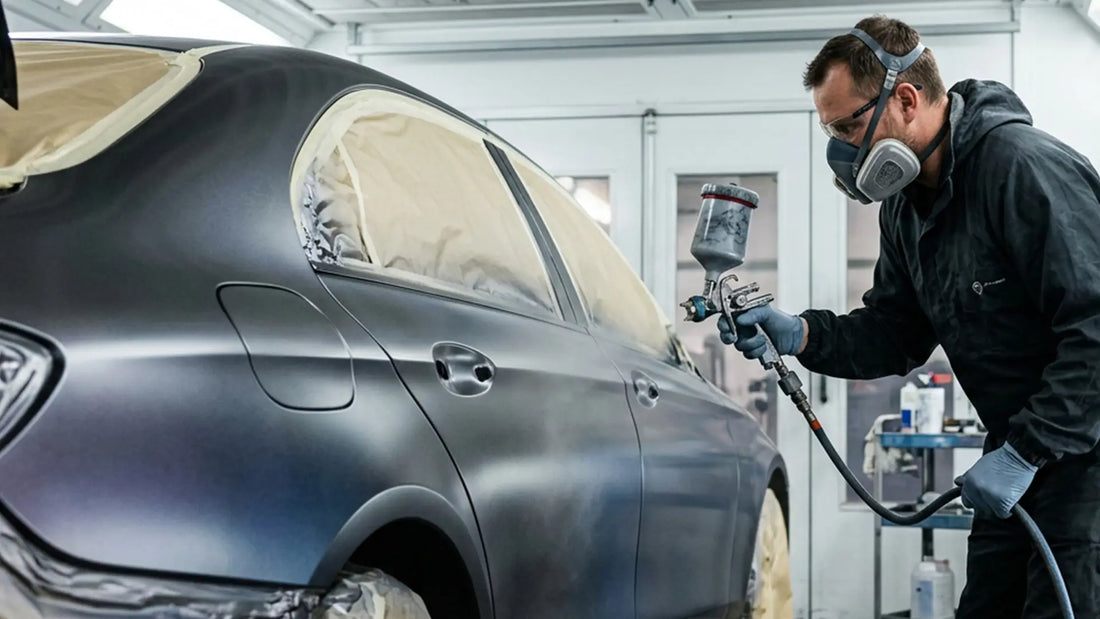

How Spray Application Affects Optical Pigment Appearance in Custom Automotive Finishes

Optical pigments can create reflective, color-shifting and other visual effects in automotive finishes, but the final appearance depends not only on the pigment itself. How the coating is sprayed affects how the pigment-containing material is deposited and formed into the effect layer, which can change the resulting effect and its uniformity.

To achieve the intended appearance from optical pigments for automotive coatings, spray application needs to be carefully controlled as part of the coating process. Factors such as atomization, material flow, spray distance, application speed and coat build can all influence how the optical pigment is presented in the finished coating.

1. Atomization and Air Pressure

Atomization controls how the coating is broken into droplets before reaching the panel. Changes in atomizing and shaping air can alter droplet size, transport and the amount of effect pigment deposited in the film, which can ultimately affect the appearance of an optical pigment finish. Automotive coating research also shows that pigment orientation is influenced by atomization and the conditions under which the spray droplets reach the surface.

A study of an automotive basecoat containing aluminum effect pigment found that changes in atomizing air, shaping air and fluid flow caused the ratio of effect pigment to color pigment in the dried film to change by more than 60%. Because perceived color was strongly related to the aluminum concentration in the film, these changes produced measurable differences in appearance.

For optical pigment finishes, this means that spray pressure and atomization settings should be controlled as part of the application process. The goal is not to use higher or lower air pressure as a way to strengthen the pigment effect, but to achieve a stable spray pattern and consistent pigment deposition appropriate for the specific coating and spray equipment.

2. Fluid Flow and Material Deposition

Fluid flow determines how much coating material reaches the panel during spraying and therefore affects the wet film formed in the effect layer. This is different from optical pigment loading, which determines how much pigment is formulated into the coating before application.

The amount of material deposited also affects whether the coating is applied as a controlled wet film or as dry spray. In automotive refinishing, dry spray occurs when droplets reach the surface in a powdery or partially dried condition, producing a coarse, low-gloss surface. Excessive material deposition can create the opposite problem, with an overly wet film and uneven build. Both conditions can affect the appearance and uniformity of optical pigment finishes.

For optical pigments, the deposition condition matters because the pigment must become evenly incorporated into the wet effect layer. Uneven material delivery can produce areas with different film build and pigment concentration, which may appear as variations in effect intensity, metallic character or color uniformity. Automotive refinishing guidance specifically identifies uneven film thickness as a cause of metallic build-up and mottling.

The target is therefore not simply more or less material, but a consistent wet application appropriate for the coating system. The required fluid output should be established together with the spray gun setup and the coating manufacturer's application instructions.

3. Spray Distance, Speed and Overlap

Spray distance directly affects how much material reaches the panel and how wet the coating is when it lands. Automotive refinish guidance commonly places the spray gun around 6–8 in. (15–20 cm) from the surface for many spray-gun applications, while some effect-pigment control coats are applied at approximately 10–12 in. (25–30 cm). Holding the gun too close can produce excessive material deposition, runs or sags, while holding it too far can allow more solvent to evaporate before the coating reaches the panel, resulting in a drier, rougher film. The exact distance should therefore follow the coating and spray-gun specifications rather than a universal value.

Spray speed and overlap determine how consistently that material is deposited across the panel. A commonly used travel speed guideline is around 1 ft/s (30 cm/s), while 50–75% overlap is widely used for automotive refinishing; higher overlap may be specified for special-effect or multi-stage finishes. Slow movement increases local film build, while excessive speed can produce a drier, thinner application. Inconsistent overlap can create striping, mottling and uneven color or effect intensity, which is particularly undesirable when applying optical pigments that need consistent coverage across the panel.

4. Wet Film Conditions and Pigment Orientation

The wetness of the coating when it reaches the panel can affect how optical pigments settle and orient within the effect layer. In automotive refinishing, an overly wet application can cause metallic particles to move and build up in localized areas, producing mottling or streaking. A dry application can prevent the coating from flowing and leveling properly, also leading to uneven appearance.

For optical pigment finishes, the goal is therefore not simply to spray wetter or drier, but to achieve a controlled wet film in which the pigment can form a consistent layer. This is particularly important for platelet-based optical pigments, where particle orientation contributes to the way light is reflected from the finish. Automotive refinishing procedures commonly use a separate control coat for metallic and pearl finishes specifically to adjust pigment orientation; typical procedures use a lighter application, greater spray distance and higher overlap than the preceding coverage coats.

5. Coat Count and Control Coats

The number of effect-layer coats directly affects the final appearance of an optical pigment finish. In automotive translucent and special-effect finishes, the effect layer is often built through multiple coats rather than sprayed to complete hiding in one pass. Two to four coats are commonly used for translucent automotive finishes, with the final number determined by the target color and effect.

Fewer coats leave more of the underlying base color visible and produce a lighter or less developed effect, while additional coats increase the amount of optical pigment in the film and progressively change the balance between the base color and the effect layer. This can increase effect intensity, coverage and perceived color depth, but additional coats do not continue improving the appearance indefinitely. Automotive refinishing procedures therefore use step-down or let-down panels with different coat counts to determine the required number for a specific finish.

This relationship is particularly important for translucent and color-shifting optical pigments, where the final appearance depends strongly on the amount of effect layer built over the base color. Actual color-shift coating instructions likewise recommend multiple light coats to build a more intense effect rather than relying on one heavy coat.

A control coat is a light finishing application used after the required effect level has been reached. Rather than adding significant film build, it helps even out metallic, pearl or other effect pigments and improve the uniformity of the final appearance. Automotive refinishing procedures commonly use a lighter application for this step than for the preceding effect coats.
