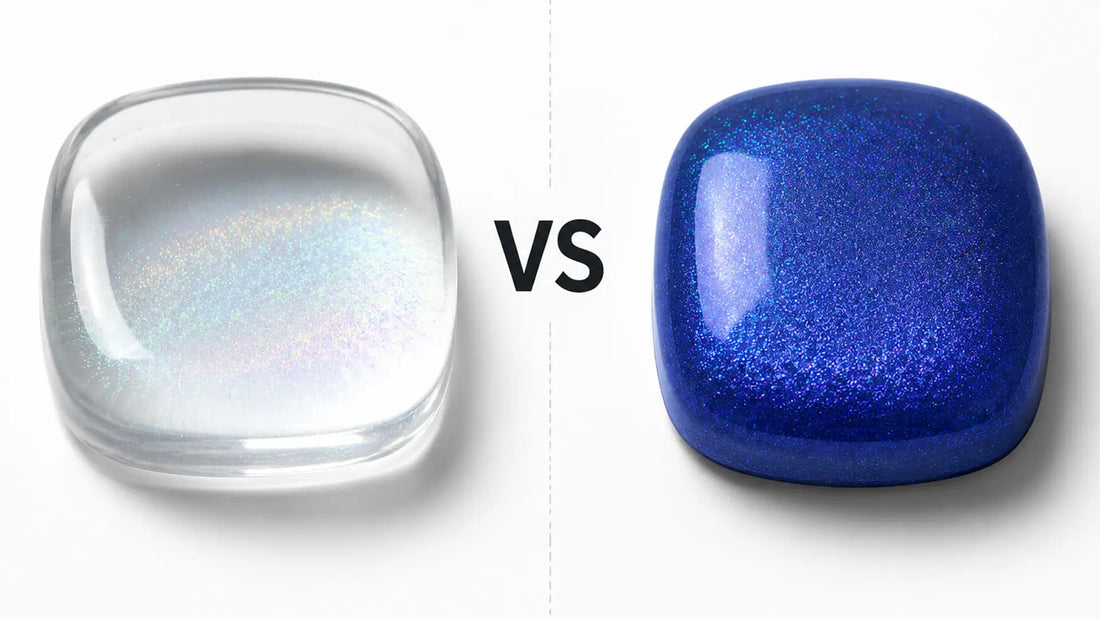

Transparency vs. Opacity of Optical Pigments: How Composition Affects Coverage and Visual Effects
Optical pigment transparency and opacity determine coverage, color depth, and substrate interaction. Composition and structure control whether pigments create opaque or translucent visual effects.
1. How Composition Affects Optical Pigment Coverage and Transparency
The composition of optical pigments directly influences how light is reflected, transmitted, and interacts with the multilayer structure. Different materials provide different optical functions, affecting the balance between coverage, transparency, brightness, and color appearance.
For BOSCOM optical pigments, commonly used materials and their functions include:
|
Pigment Component |
Optical Function |
|
Silica (SiO₂) |
Common substrate material providing a stable base for optical coating structures |
|
Titanium Dioxide (TiO₂) |
High refractive index material that enhances reflection and interference effects |
|
Aluminum |
Reflective layer material providing metallic brightness and chrome effects |
|
Titanium |
Used in optical coating structures to modify reflective properties and visual effects |
|
Iron Oxide (Fe₂O₃) |
Provides color contribution and absorption characteristics |
|
Iron |
Used in magnetic optical pigment systems |
2. Opaque vs. Translucent Optical Pigments: Understanding the Difference
Optical pigments can be designed with different levels of coverage and substrate influence.
|
Type |
Visual Characteristics |
BOSCOM Pigments Representative Series |
|
Opaque Optical Pigments |
Higher coverage, stronger color presence, and reduced substrate influence |
|
|
Translucent Optical Pigments |
Greater substrate interaction, deeper visual effects, and enhanced color depth |
3. Demonstrating Different Transparency and Coverage Characteristics
The difference in transparency and coverage can be visually evaluated using black and white background cards.
For example, OP60101 Sapphire Blue and TP60101 Ocean Sapphire produce similar sapphire blue color effects, but their transparency characteristics are different when applied on contrasting backgrounds.
This difference demonstrates that transparency is not simply a limitation of optical pigments. Instead, it is a controlled optical characteristic used to achieve different visual effects.
For applications requiring depth, layering, or substrate interaction, translucent optical pigments can provide visual effects that opaque pigments are not designed to achieve.
4. Other Factors Influencing Optical Pigment Appearance
Besides composition, several application factors can influence the final perceived coverage and appearance.
|
Factor |
Influence |
|
Affects light reflection, scattering, and visual uniformity |
|
|
Pigment loading level |
Influences color intensity and visual density |
|
Coating thickness |
Thicker layers generally increase visual coverage |
|
Substrate color |
Strongly affects perceived transparency and color appearance |
|
Dispersion quality |
Ensures consistent optical performance |
5. Selecting the Right Transparency Level
The appropriate balance between transparency and coverage depends on the desired visual effect.
|
Application Requirement |
Preferred Optical Property |
|
Strong chrome appearance |
High reflectivity with controlled coverage |
|
Consistent color across different substrates |
Higher opacity |
|
Substrate-enhanced color travel effects |
Controlled transparency |
Conclusion
Selecting the right optical pigment requires balancing coverage, transparency, and visual effect requirements. By understanding how composition influences optical performance, formulators and manufacturers can choose pigments that deliver the desired appearance for their specific applications.
